2026 Ford F-150 Capability Guide: Engines, Towing, Payload and Everyday Usability

The F-150 has been Canada's top-selling truck for decades, and that position is backed by real numbers. Six engine options, a maximum towing rating of 13,500 lbs (6,123 kg), and a payload ceiling of 2,440 lbs (1,107 kg) make it the benchmark that other trucks get measured against. For drivers in Ontario who need a truck that earns its keep through the week and handles a trailer on the weekend, the 2026 F-150 covers the full range.

This guide breaks down everything you need to know about the 2026 F-150's powertrains and hauling capability. From the fuel-efficient 2.7L EcoBoost to the electrified PowerBoost Hybrid and the off-road-focused Raptor lineup, each engine serves a specific purpose. Understanding which one fits your work is the first step toward getting a truck that actually delivers.

At a Glance: 2026 F-150 Towing and Payload by Engine

All engines pair with a 10-speed SelectShift automatic transmission. Max towing and payload vary by cab configuration, axle ratio, and equipment. Figures shown represent maximum available ratings when properly configured.

The Six Engines: What Each One Is Built For

2.7L EcoBoost V6 : 325 hp / 400 lb-ft of torque

The twin-turbocharged 2.7L is the efficiency-forward choice. At 8,400 lbs (3,810 kg) of towing capacity, it handles a ski boat, utility trailer, or loaded landscape trailer without issue. For Ontario buyers who use the truck daily and tow occasionally, this engine's fuel consumption advantage adds up over time.

3.5L EcoBoost V6 : 400 hp / 500 lb-ft of torque

This is the towing benchmark in the full-size segment. With up to 13,500 lbs (6,123 kg) of conventional towing and 2,440 lbs (1,107 kg) of payload when properly configured, it's the engine for contractors moving heavy equipment, buyers pulling large travel trailers or fifth-wheels, and anyone who needs maximum working numbers out of a half-ton.

3.5L PowerBoost Full Hybrid V6 : 420 hp / 570 lb-ft of torque

The PowerBoost delivers the highest torque in the F-150 lineup while also offering onboard power generation through Pro Power Onboard. Towing reaches 11,600 lbs (5,262 kg). The electric motor contributes strong low-end torque from a standstill, which is noticeable when pulling a loaded trailer off a boat launch ramp or climbing a grade. It also returns the best fuel consumption of any gas-powered F-150 configuration.

5.0L Ti-VCT V8 : 400 hp / 410 lb-ft of torque

For drivers who want a traditional naturally aspirated V8, the 5.0L is a proven choice. Towing reaches 12,800 lbs (5,806 kg) and payload hits 2,235 lbs (1,014 kg). This engine accepts regular unleaded or E85 fuel, adding flexibility for buyers who want that option.

HO 3.5L EcoBoost V6 : 450 hp / 510 lb-ft of torque (Raptor only)

This high-output version of the 3.5L EcoBoost is exclusive to the F-150 Raptor. It tows up to 8,200 lbs (3,719 kg) and carries up to 1,400 lbs (635 kg) of payload, while pairing with the Raptor's FOX Racing shocks, long-travel suspension, and all-terrain hardware. The priority is off-road performance, but the truck remains capable when a trailer is involved.

5.2L Supercharged V8 : 720 hp / 640 lb-ft of torque (Raptor R only)

The most powerful engine in the F-150 lineup belongs to the Raptor R. At 720 hp, it's built for high-speed off-road use, and it still rates at 8,700 lbs (3,946 kg) of towing and 1,400 lbs (635 kg) of payload. It requires premium unleaded fuel and is the only F-150 engine that comes with an 11.5-quart oil capacity and a dedicated supercharger cooling loop.

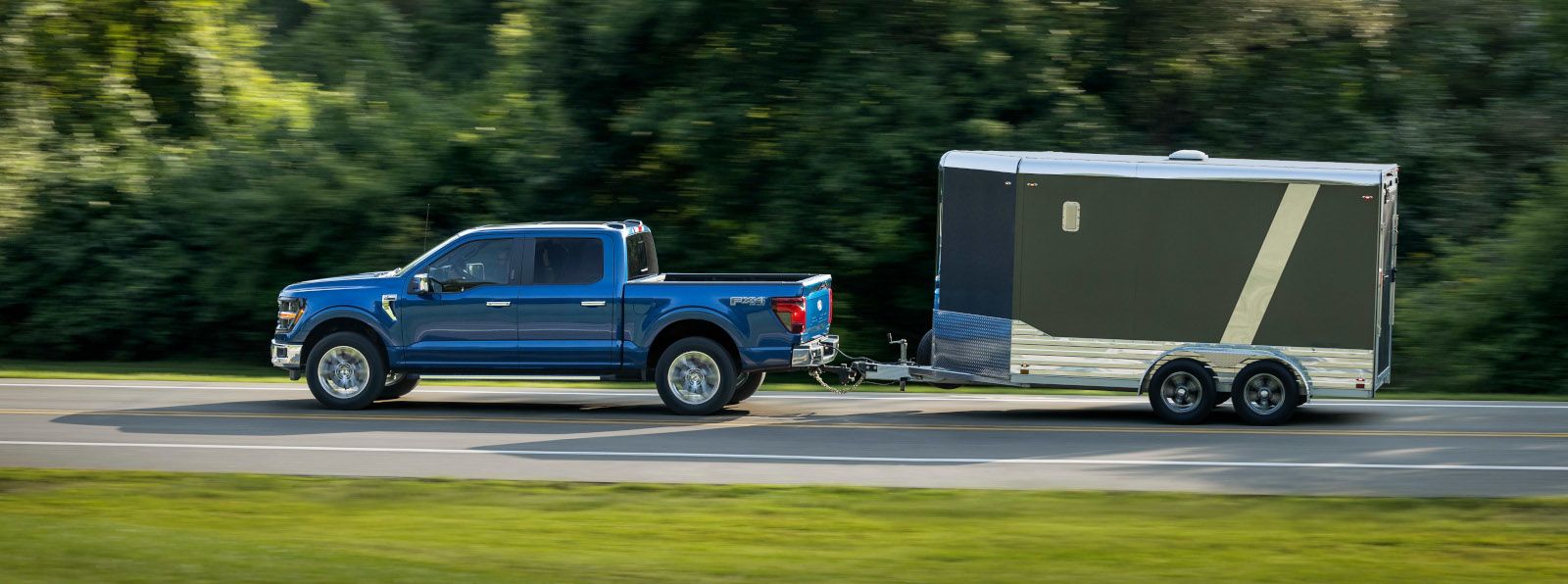

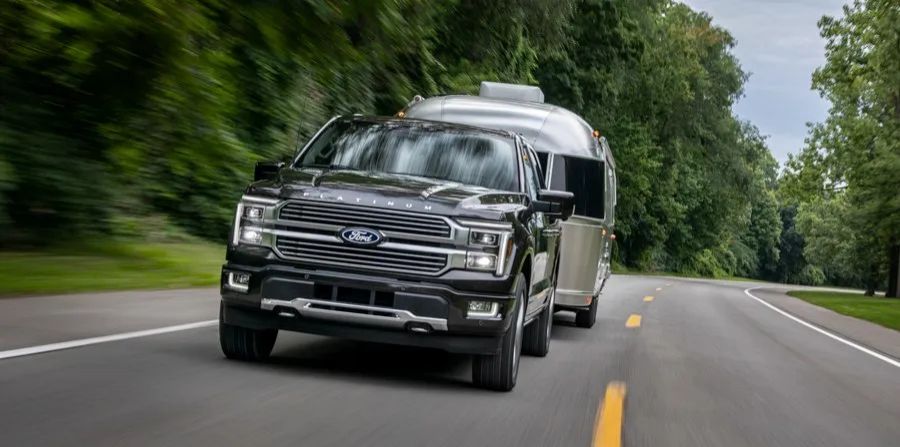

Towing: What the Numbers Mean in Practice

The 13,500 lbs (6,123 kg) maximum is achieved with the 3.5L EcoBoost V6 in an XLT SuperCrew 4x4 with a 6.5 ft box, fitted with the Tow/Haul Package and Max Tow Axle. Configuration matters: towing figures shift based on cab size, axle ratio, and equipment.

The F-150 backs those numbers with a strong set of towing tools:

• Standard Class IV Trailer Hitch with Smart Trailer Tow Connector
• Standard Tow/Haul Mode for improved power delivery under load
• Standard Trailer Sway Control through the AdvanceTrac system
• Available Pro Trailer Backup Assist and Pro Trailer Hitch Assist
• Available On-Board Scales with Smart Hitch for real-time tongue weight monitoring
• Available Trailer Brake Controller
• Trailer Reverse Guidance using high-definition cameras

Payload: The Bed Side of the Equation

Maximum payload of 2,440 lbs (1,107 kg) is available with the 3.5L EcoBoost V6 in a Regular Cab configuration. SuperCab and SuperCrew configurations will show lower payload ratings. The doorjamb sticker on your specific truck is always the authoritative number.

What 2,000-plus lbs of payload capacity allows in practice:

• Multiple pallets of roofing shingles or lumber in a single run
• A snowmobile or ATV in the bed with room for gear
• Equipment loads typical of landscaping, electrical, or plumbing trades

Cab, Bed and Drivetrain Choices

The 2026 F-150 is available in Regular Cab, SuperCab, and SuperCrew configurations with bed lengths of 5.5 ft, 6.5 ft, and 8.0 ft. Cargo box volume ranges from 1,494.8 L (5.5 ft box) to 2,191 L (8.0 ft box). Four-wheel drive is available across the lineup and standard on most upper trims.

For most Ontario buyers, the SuperCrew with a 6.5 ft bed and 4x4 drivetrain covers the widest range of uses: full rear-seat space, a practical bed length, and 4x4 capability for winter job sites and variable road conditions year-round.

Everyday Work Features

Beyond towing and payload, the F-150 includes features that make day-to-day use more practical:

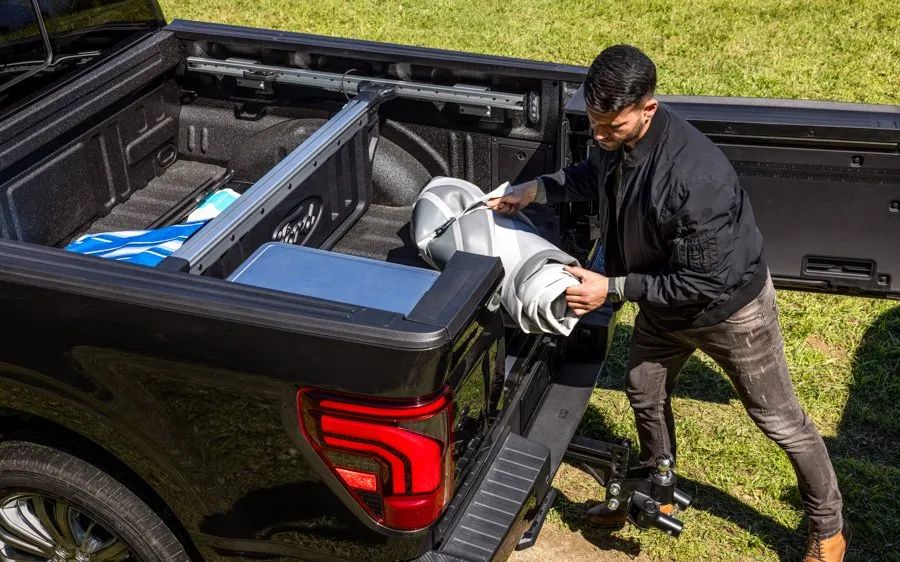

• Pro Access Tailgate: Opens as a traditional drop-down or swings out a full 100 degrees, bringing you up to 19 inches closer to your cargo from the side.
• Tailgate Work Surface: A built-in flat surface with a ruler and clamp zones turns the tailgate into a usable workbench.
• Interior Work Surface: A fold-out desk in the cab with a stowable gear shifter, useful for reviewing plans or paperwork on site.
• Under-Seat Storage: Lockable rear-seat storage in SuperCrew models keeps tools and valuables secure.
• Pro Power Onboard: Up to 2.0 kW on gas models; up to 7.2 kW on the PowerBoost Hybrid. Run power tools or charge equipment directly from the truck.

Which Engine Fits Your Work?

For most buyers who use the F-150 as a working truck and family hauler, the 3.5L EcoBoost V6 delivers the most capability. Buyers who want fuel economy advantages alongside solid towing should look closely at the PowerBoost Hybrid. Those who want a traditional V8 with flexible fuel options will find the 5.0L a strong fit.

Explore the 2026 F-150 at Bayfield Ford in Barrie

The team at Bayfield Ford in Barrie can help you match the right engine and configuration to how you actually use your truck. Visit the dealership and walk through towing specs, bed options, and drivetrain choices with someone who knows the lineup.
